Immerse yourself in elevated living with our performance-driven Doors and Windows. The IWIN System by Bhoruka features a comprehensive range of aluminium door and window systems
designed to deliver superior structural performance, weather resistance, and sound insulation for modern architectural applications.
FEATURES
Structural (Wind load)
2,500Pa Deflection: 1/175
Water tightness
300Pa/350Pa
Air infiltration
1.12 m³/(h.m2) Maximum at 75Pa
Sound insulation
Grade T - 2 (30dB)
Glass Thickness
5 - 26mm
Please Click here to download the Catalog to know more about IWIN range of Aluminium Door Window Systems
VARIATION AND SIZE INFORMATION
| Structural Performance |
|---|
| Wind Load: 2,500Pa Deflection: 1/175 |
| Air Infiltration |
|---|
| 1.12 m³/(h.m²) Maximum at 75Pa |
| Water Tightness |
|---|
| 300Pa / 350Pa |
| Sound Insulation |
|---|
| Grade T – 2 (30dB) |
| Open Close Test |
|---|
| 30,000 Cycle, No Damage |
| Glass Thickness |
|---|
| 5 – 26mm |
Products Range
Comprehensive Aluminium Door & Window Systems
The IWIN range offers five product types — Sliding, Fixed, Casement, Top Hung, and Door systems — each engineered with precision aluminium extrusion technology for superior durability, weather resistance, and aesthetic appeal.
Performance
Immerse yourself in elevated living with our performance-driven Doors and Windows. Engineered and tested to international standards for wind load resistance, air infiltration control, water tightness, and sound insulation.
Value Added Parts & Accessories
Transform your indoors and enjoy a peaceful, secure, and comfortable environment, all year round. Our offerings include Anti-Lift Devices for added security, durable EPDM Gaskets ensuring weather resistance, ergonomic Handles for effortless operation, and Child Locks for a safer environment – all meticulously designed by YKK AP with decades of expertise.
Anti-Lift Device
Enhanced security feature that prevents the window sash from being lifted out of the frame from outside.
Drain Valve
Built-in drainage system that efficiently channels water away, ensuring long-term durability and weather resistance.

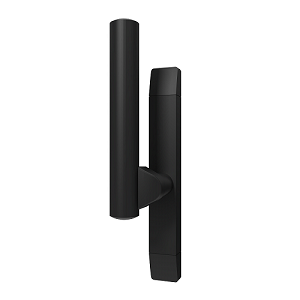

Handle
Ergonomic handle designed for effortless operation with a sleek and modern finish.
End-cap Stopper
Our Sliding Windows & Doors feature crafted stoppers, that are designed to Prioritize your safety and convenience.
PERFORMANCE AND SPECIFICATIONS
Specifications
- Structural Performance (Wind Load): 2,500Pa Deflection: 1/175
- Air Infiltration: 1.12 m³/(h.m²) Maximum at 75Pa
- Water Tightness: 300Pa / 350Pa
- Sound Insulation: Grade T – 2 (30dB)
- Open Close Test: 30,000 Cycle, No Damage
- Glass Thickness: 5 – 26mm
Air Infiltration
Water Tightness
